SKU: J3-01 Category:

J3-01 Gravitation mount (4, 5 and 6 legs | 2000mm, 3000mm and 4000mm antenna pipe)

The J3-01 Gravitation Mount is a highly reliable and widely used mounting solution for telecommunication antennas and radios on roof top sites. Specifically designed to meet the rigorous demands of the telecommunications industry, this mounting system offers a secure and sturdy platform for installing and securing various types of equipment. The J3-01 Gravitation Mount utilizes a robust and galvanized steel structure that is engineered to withstand extreme weather conditions and provide exceptional stability. The mounting system employs the concept of gravity to ensure the equipment remains firmly in place. It relies on the use of concrete blocks as ballast to counterbalance the wind load of the mounted antennas and radio equipment, effectively preventing any undesirable movement or displacement.

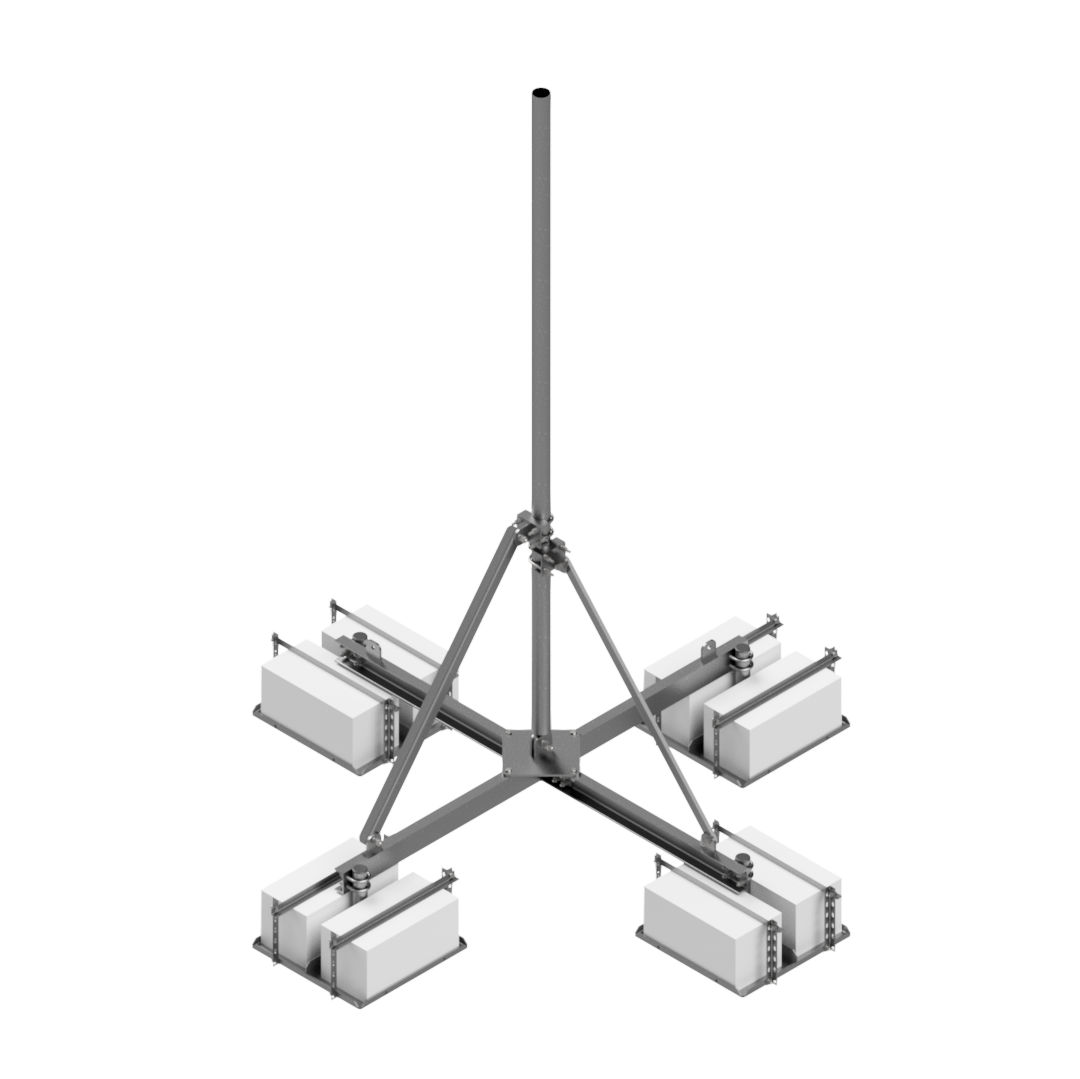

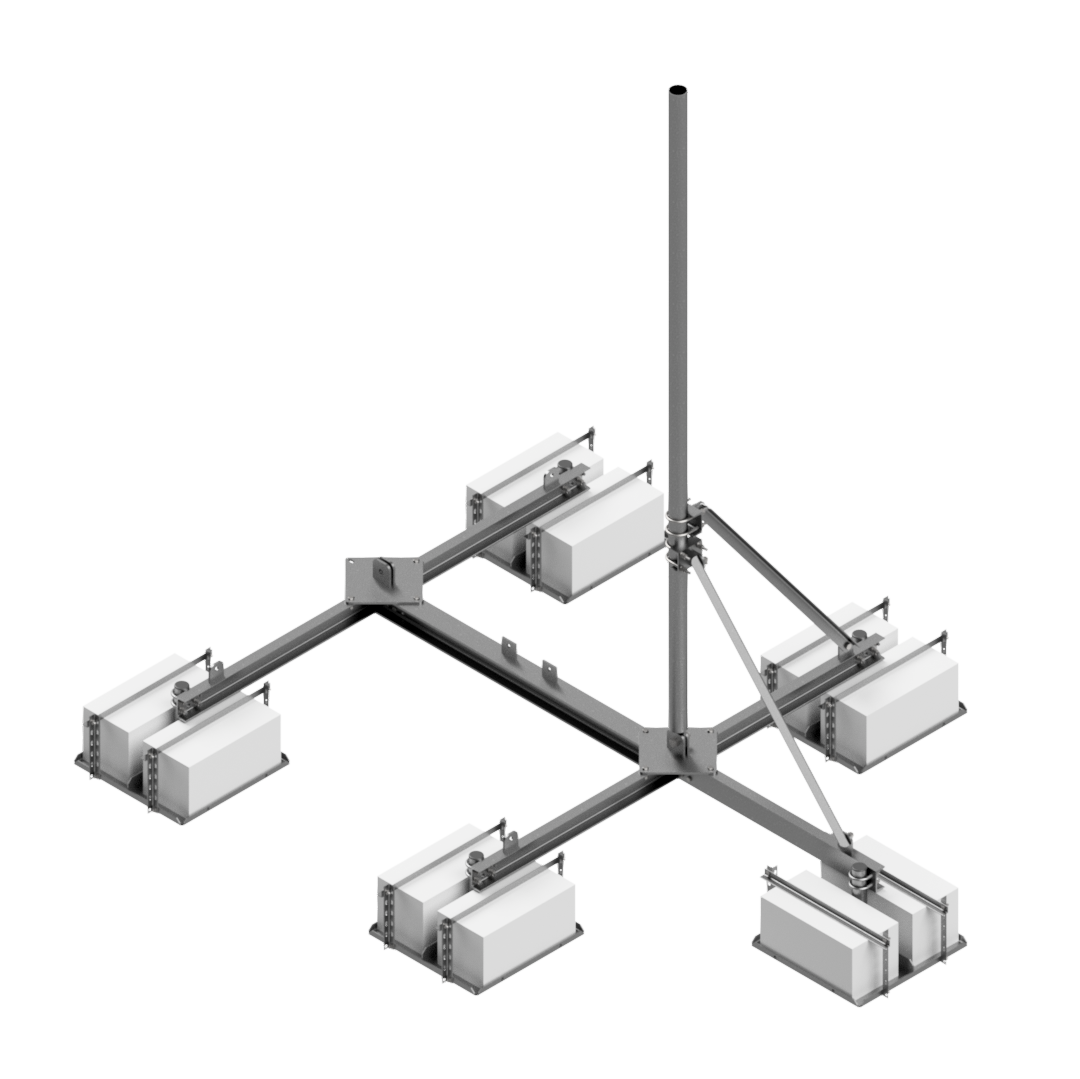

With the J3-01 Gravitation Mount, customers have the flexibility to choose from different configurations based on their specific requirements. The mount is available with 4 feet, 5 feet, or 6 feet, allowing for optimal stability and load distribution. Additionally, customers can select the desired length of the antenna pipe, with options of 2000mm, 3000mm, or 4000mm, enabling precise customization to suit the unique needs of each installation.

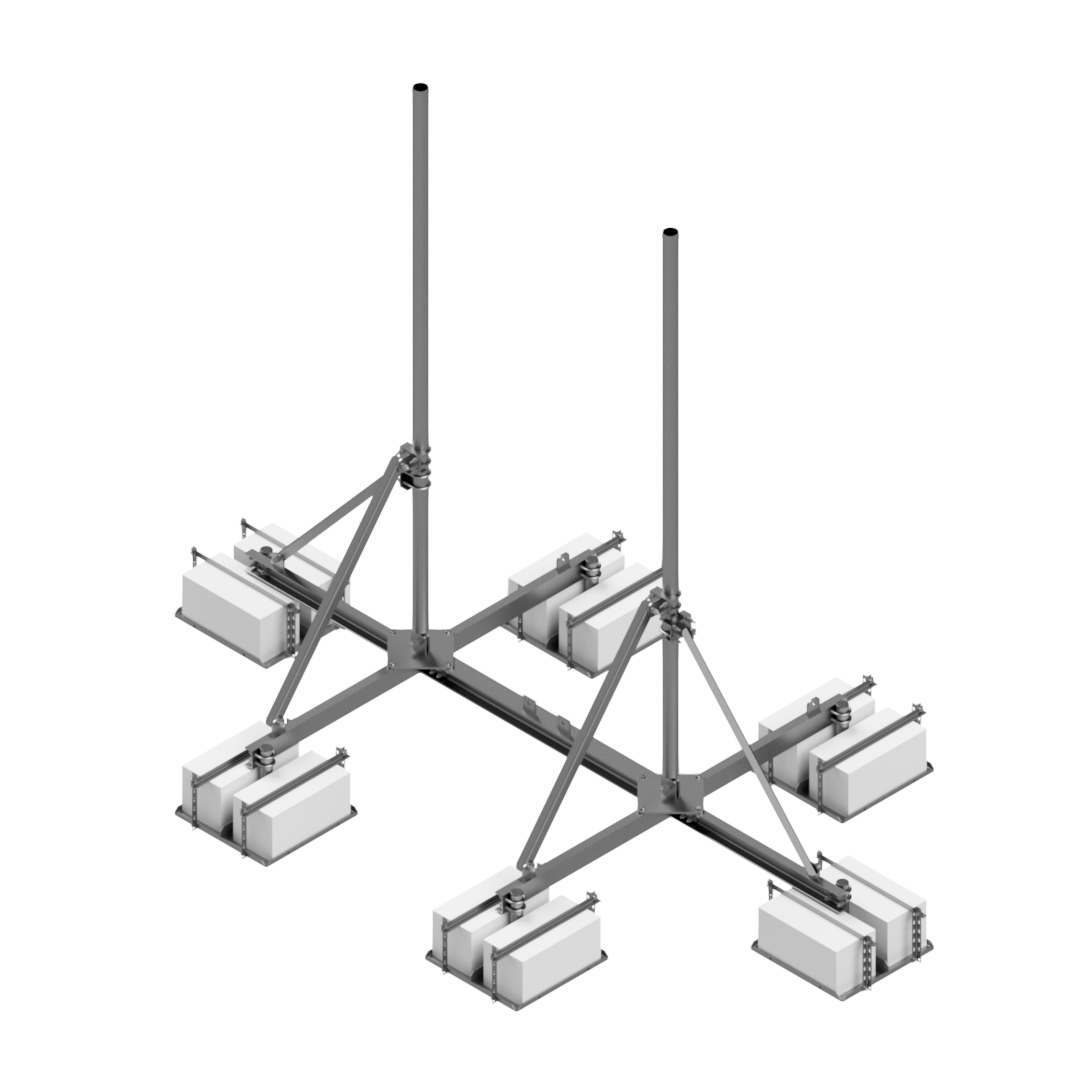

The 6 feet configuration comes with a second antenna pipe.

Can be combined with products for RRU-mounting such as:
GR001-11 or J3-01-RRU.

1 Layer of concrete blocks are included – additonal ballast can be purchased separately:

Log in for prices, details and placing orders
